Project Description

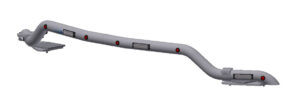

Designed and model adapted aluminium bars with the cable drawn to the cabin. included with anodized surface treatment or with powder coating. Delivered with equipment according the table below. Add clamp brackets to mount extra equipment.

NAME WEIGHT MODEL

ROOF BAR PACKAGE 1 COMPACT
Art: 101010-11
Art: 101010-13 (lacquered)
Bar for mounting on the roof.
Clamp bracket: 5
Supplied with bolt set
11kg R914-R926
A910-918

ROOF BAR PACKAGE 2 COMPACT
Art: 101010-21
Art: 101010-23 (lacquered)
Bar for mounting on the roof.
Warning lights: 8
Position light white: 2
Position light red: 2
Position light orange: 6
Clamp bracket: 5
Supplied with bolt set
12kg R914-R926
A910-918

ROOF BAR PACKAGE 1 STANDARD
Art: 101020-11
Art: 101020-13 (lacquered)
Bar for mounting on the roof.
Clamp bracket: 5
Supplied with bolt set
11kg

ROOF BAR PACKAGE 2 STANDARD
Art: 101020-21
Art: 101020-23 (lacquered)
Bar for mounting on the roof.
Warning lights: 8
Position light white: 2
Position light red: 2
Position light orange: 6
Clamp bracket: 5
Supplied with bolt set
13kg

COUNTERWEIGHT
Art: 101900-11
Art: 101900-13 (lacquered)
Bar for mounting on counterweight.
Warning lights: 6
Position light red: 6
Position light orange: 2
Clamp bracket: 2
7kg A916

COUNTERWEIGHT
Art: 102310-11
Art: 102310-13 (lacquered)
Bar for mounting on counterweight.
Warning lights: 4
Position light red: 6
Supplied with bolt set
Compatible with Leica.
11kg A914c-4
A912c

COUNTERWEIGHT
Art: 102320-11
Art: 102320-13 (lacquered)
Bar for mounting on counterweight.
Warning lights: 4
Position light red: 6
Supplied with bolt set
Compatible with Leica,
accessory kit art: 102344.
11kg A910c-4

COUNTERWEIGHT
Art: 102330-11
Art: 102330-13 (lacquered)
Bar for mounting on counterweight.
Warning lights: 4
Position light red: 6
Supplied with bolt set
Compatible with Leica.
11kg A918C-4

INSTALLATION KIT LECIA
Art: 102344
Brackets for mounting Leica GPS masts 8kg A910C-4

All products are delivered complete with pre-wired cables and attachment plates. Anodised is supplied as standard but available in all RAL colors

NAME WEIGHT MODEL

CLAMP BRACKET 50mm
Art: 100598

Attachment for mounting working lights on tube 60mm

CLAMP BRACKET 20mm
Art: 100597
Attachment for mounting working lights on tube 60mm

ROOF RAMP PROFILE SET
Art: 102188


To mount together the roof Bar.
2kg 102180-11
102180-21

WARNING LIGHT
Art: 48765
WARNING LIGHT SPACING
Art: 101541
Warning light with six LEDs for mounting on bars. Aluminum housing and polycarbonate lens.
Clear glass. Multiple devices can be synchronized and flash simultaneously or alternately.
Approved according to ECE R65.
1,5kg 140-160w

POSITION LIGHT WHITE
Art: 487540
POSITION LIGHT RED
Art: 487550
POSITION LIGHT ORANGE
Art: 487560
Round position lights with lights in three different colors, red, orange and white.
All position lights have clear lens glass. The housing is made of ABS plastic and the lens is PMMA.
Can be mounted on flat surfaces and on 50-60mm bars with spacer provided.
Approved according to ECE R65.

COMPLETE LED LIGHT RAMP (SHORT)
Art: 487695P
Set with Slimbar 10W, 440 mm and bracket
Work light/headlamps in LED. Aluminum housing with polyester lacquer, lens in polycarbonate.
Light image, river: Work light that spreads the light broadly but briefly.
Theoretical lumen: 10,800 lm
Actual lumen: 6,400–6,800 lm

ONLY LED LIGHT RAMP (SHORT)
Art: 487695
Slimbar 10W, 440 mm
Work light/headlamps in LED. Aluminum housing with polyester lacquer, lens in polycarbonate.
Light image, river: Work light that spreads the light broadly but briefly.
Theoretical lumen: 10,800 lm
Actual lumen: 6,400–6,800 lm
1,5kg 140-160w

All products are delivered complete with pre-wired cables and any attachment plates. Supplied as standard in anodised but available in all RAL colours.
