Project Description

Designed and model adapted aluminium bars with the cable drawn to the cabin. Included with anodized surface treatment or with powder coating. Delivered with equipment according the table below. Add clamp brackets to mount extra equipment.

NAME WEIGHT MODEL

ROOF BAR PACKAGE 1
Art: 100760-11
Art: 100760-13 (lacquered)

 Bar for mounting on the roof.
Clamp bracket: 6
 19kg ZX130-870-5.
ZX130-870-6.
ZX130-870-7.

ROOF BAR PACKAGE 2
Art: 100760-21
Art: 100760-23 (lacquered)

 Bar for mounting on the roof.
Warning lights: 8
Position light white: 2
Position light red: 2
Position light orange: 6
Clamp bracket: 5 		 19kg ZX130-870-5.
ZX130-870-6.
ZX130-870-7.

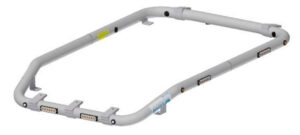

ROOF BAR PACKAGE 2
Art: 102350-21
Art: 102350-23 (lacquered)		 Bar for mounting on the roof.
Warning lights: 8
Position light white: 2
Position light red: 2
Position light orange: 4
Clamp bracket: 5 		 19kg ZX85US-6
ZX135US-6
ZX225US-6

COUNTERWEIGHT BAR
Art: 102260-21
Art: 102260-23 (lacquered)		 Bar for mounting on counterweight.
Warning lights: 4
Position light red: 6
Position light orange: 2
Clamp bracket: 2
Supplied with bolt set		 11kg ZX140W-5

COUNTERWEIGHT BAR
Art: 102070-21
Art: 102070-23 (lacquered)		 Bar for mounting on counterweight.
Warning lights: 5
Position light red: 6
Position light orange: 2
Clamp bracket: 2
Supplied with bolt set		 11kg ZX140W-6

COUNTERWEIGHT BAR
Art: 102010-21
Art: 102010-23 (lacquered)		 Bar for mounting on counterweight.
Warning lights: 3
Position light red: 4
Clamp bracket: 2 		 7kg ZX145-6

COUNTERWEIGHT BAR
Art: 102210-21
Art: 102210-23 (lacquered)		 Bar for mounting on counterweight.
Warning lights: 4
Position light red: 4
Position light orange: 2
Clamp bracket: 2
Supplied with bolt set		 11kg ZX210LC-6

COUNTERWEIGHT BAR
Art: 101680-21
Art: 101680-23 (lacquered)

 Bar for mounting on counterweight.
Warning lights: 4
Position light red: 6
Position light orange: 2
Clamp bracket: 2 		 11kg ZX300LC-5
ZX300LC-7

COUNTERWEIGHT BAR
Art: 102250-21
Art: 102250-23 (lacquered)

 Bar for mounting on counterweight.
Warning lights: 3
Position light red: 6
Clamp bracket: 2
Supplied with bolt set		 11kg ZX170W-6

COUNTERWEIGHT BAR
Art: 102910-11
Art: 102910-13 (lacquered)

 Bar for mounting on counterweight.
Warning lights: 3
Position light red: 6
Position light orange: 2		 5kg ZX130LC

COUNTERWEIGHT BAR
Art: 102710-21
Art: 102710-23 (lacquered)

 Bar for mounting on counterweight.
Warning lights: 6
Position light red: 6
Position light orange: 2
Clamp bracket: 2		 ZX250

COUNTERWEIGHT BAR
Art: 102360-21
Art: 102360-23 (lacquered)

 Bar for mounting on counterweight.
Warning lights: 4
Position light red: 6
Position light orange: 2
Clamp bracket: 2		 ZX225US-6

COUNTERWEIGHT BAR
Art: 102050-21
Art: 102050-23 (lacquered)

 Bar for mounting on counterweight.
Warning lights: 3
Position light red: 6
Position light orange: 2
Clamp bracket: 2		 ZX160-6

COUNTERWEIGHT BAR
Art: 102730-21
Art: 102730-23 (lacquered)

 Bar for mounting on counterweight.
Warning lights: 4
Position light red: 5
Clamp bracket: 2		 ZX85US-6

All products are delivered complete with pre-wired cables and attachment plates. Anodised is supplied as standard but available in all RAL colors

NAME WEIGHT MODEL

CLAMP BRACKET 50mm
Art: 100598

 Attachment for mounting working lights on tube 60mm –

CLAMP BRACKET 20mm
Art: 100597		 Attachment for mounting working lights on tube 60mm –

ROOF RAMP BRACKET
Art: 700890
For mounting a Light ramp on a roof bar		 –

WARNING LIGHT
Art: 48765
WARNING LIGHT SPACING
Art: 101541		 Warning light with six LEDs for mounting on bars. Aluminum housing and polycarbonate lens.
Clear glass. Multiple devices can be synchronized and flash simultaneously or alternately.
Approved according to ECE R65.		 –

POSITION LIGHT WHITE
Art: 487540
POSITION LIGHT RED
Art: 487550
POSITION LIGHT ORANGE
Art: 487560		 Round position lights with lights in three different colors, red, orange and white.
All position lights have clear lens glass. The housing is made of ABS plastic and the lens is PMMA.
Can be mounted on flat surfaces and on 50-60mm bars with spacer provided.
Approved according to ECE R65.		 –

COMPLETE LED LIGHT RAMP (SHORT)
Art: 480010		 Set with Slimbar 10W, 440 mm and bracket
Work light/headlamps in LED. Aluminum housing with polyester lacquer, lens in polycarbonate.
Light image, flood: Work light that spreads the light broadly but briefly.
Theoretical lumen: 10,800 lm
Actual lumen: 6,400–6,800 lm		 –

ONLY LED LIGHT RAMP (SHORT)
Art: 487695		 Slimbar 10W, 440 mm
Work light/headlamps in LED. Aluminum housing with polyester lacquer, lens in polycarbonate.
Light image, flood: Work light that spreads the light broadly but briefly.
Theoretical lumen: 10,800 lm
Actual lumen: 6,400–6,800 lm		 –

WORK LIGHT
Art: 488006		 WIP LIGHT W160-F60WL 93660

LED work light 60W, Dimmable (high and low beam)
6 pcs ”High Power” 10W OSRAM LED
Light image, flood
Lumen: 5 400 lm

 –

NAME WEIGHT MODEL

ROOF BAR ZW180PL-6
Art: 102270-21
Art: 102270-23 (lacquered)		 Bar for mounting on the roof.
Warning lights: 8
Position light white: 2
Position light red: 4
Position light orange: 8
Clamp bracket: 5 		 19kg ZW180PL-6.
ZW220-6

HOOD BAR ZW180PL-6
Art: 102290-21
Art: 102290-23 (lacquered)

 Bar for mounting on the hood.
Warning lights: 6
Position light red: 2
Position light orange: 8
Supplied with bolt set		 11kg ZW180PL-6
ZW220-6

All products are delivered complete with pre-wired cables and attachment plates. Anodised is supplied as standard but available in all RAL colors

NAME WEIGHT MODEL

CLAMP BRACKET 50mm
Art: 100598

 Attachment for mounting working lights on tube 60mm –

CLAMP BRACKET 20mm
Art: 100597		 Attachment for mounting working lights on tube 60mm –

ROOF RAMP BRACKET
Art: 700090
For mounting a Light ramp on a roof bar.		 –

WARNING LIGHT
Art: 48765
WARNING LIGHT SPACING
Art: 101541		 Warning light with six LEDs for mounting on bars. Aluminum housing and polycarbonate lens.
Clear glass. Multiple devices can be synchronized and flash simultaneously or alternately.
Approved according to ECE R65.		 –

POSITION LIGHT WHITE
Art: 487540
POSITION LIGHT RED
Art: 487550
POSITION LIGHT ORANGE
Art: 487560		 Round position lights with lights in three different colors, red, orange and white.
All position lights have clear lens glass. The housing is made of ABS plastic and the lens is PMMA.
Can be mounted on flat surfaces and on 50-60mm bars with spacer provided.
Approved according to ECE R65.		 –

COMPLETE LED LIGHT RAMP (WIDE)
Art: 480010		 Set with Slimbar 10W, 616 mm and bracket

Work light/headlamps in LED. Aluminum housing with polyester lacquer, lens in polycarbonate.
Light image: Long but narrow.
Theoretical lumen: 14 500 lm
Actual lumen: 7 400–8 000 lm

 –

ONLY LED LIGHT RAMP (WIDE)
Art: 487696

 Slimbar 10W, 616 mm
Work light/headlamps in LED. Aluminum housing with polyester lacquer, lens in polycarbonate.
Light image: Long but narrow.
Theoretical lumen: 14 500 lm
Actual lumen: 7 400–8 000 lm
 –

WORK LIGHT
Art: 488006		 WIP LIGHT W160-F60WL 93660

LED work light 60W, Dimmable (high and low beam)
6 pcs ”High Power” 10W OSRAM LED
Light image, flood
Lumen: 5 400 lm

 –
